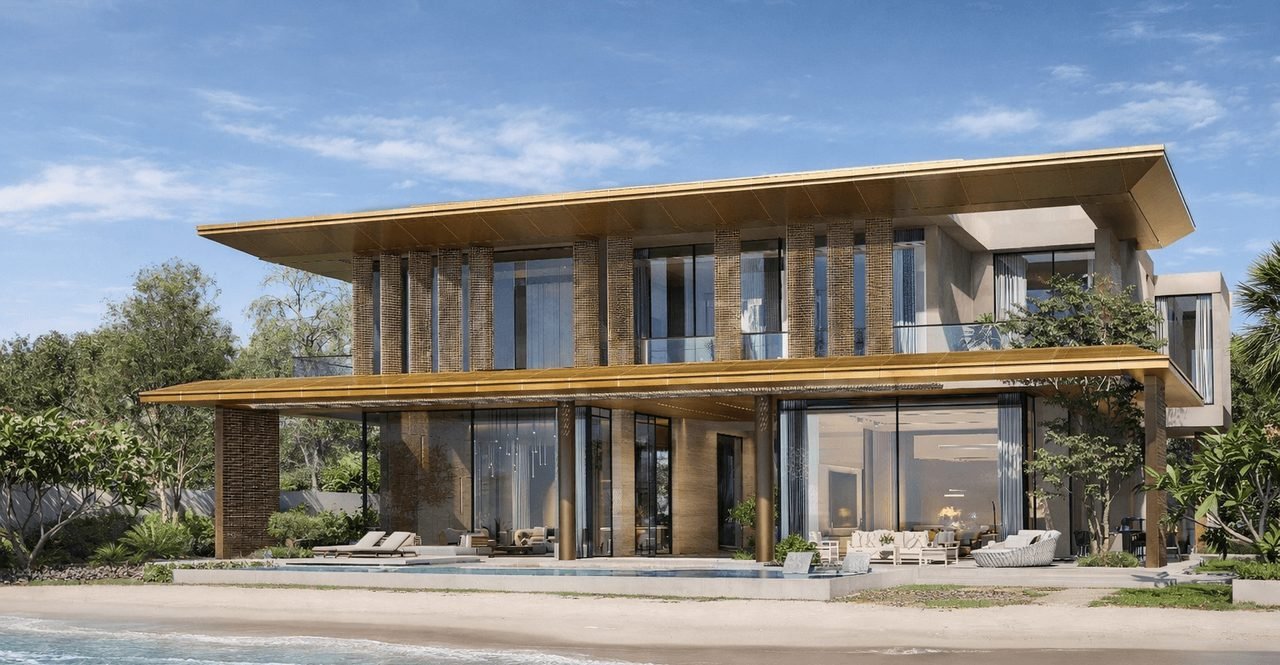

Jubail Island Villa Prototype
A waterfront villa prototype in a master-planned Abu Dhabi community, where architecture, landscape and daylight are designed as one.
3D Visualization
3D visualization of architecture and interiors
Anne Design House produces photorealistic 3D visualizations of architecture and interiors, so clients can judge proportion, materials and daylight before anything is built. Visuals are produced in-house in Revit and 3ds Max as part of the design process.
The approach
Visualisation here is a design tool, not decoration. Renders are produced from the same model the drawings come from, so what you approve is what gets detailed and built.
It is also how alternatives are tested. On the Jubail Island prototype two complete interior palettes were visualised so the client could choose between them with confidence.
What this service includes
- Exterior architectural renders
- Interior renders, room by room
- Alternative material and palette studies
- Daylight and evening lighting studies
- Views for developer and investor presentations
- Model built in Revit (BIM) and 3ds Max
Who it is for
- Clients deciding between design options
- Developers presenting a scheme to buyers or investors
- Owners who find it hard to read plans
- Projects needing approval from a committee or board
What you receive
- High-resolution still renders
- Alternative palette or option views
- Presentation set for approvals
- Images suitable for marketing use
Process
How a 3d visualization commission runs
- 01
Consultation & brief
We start with the site, the brief and the way you will use the building — plot conditions, developer or community guidelines, programme, budget range and timeline.
- 02
Concept design
Zoning, spatial planning and massing, with an early material and colour direction. You see the idea in plan and in three dimensions before anything is fixed.
- 03
Design development
Layouts, elevations, sections and visualisation are refined together until proportion, circulation and light are right — and the scheme meets the authority or developer requirements.
- 04
Detailed design & FF&E
Technical drawings, joinery details, finishes, lighting and furniture specification — the package a contractor and joiner can build from without guesswork.
- 05
Coordination on site
We work alongside consultants, suppliers and contractors, reviewing shop drawings and samples so the built result matches the approved design.
Relevant work
Projects using this service
2023
Jubail Island Private Villa

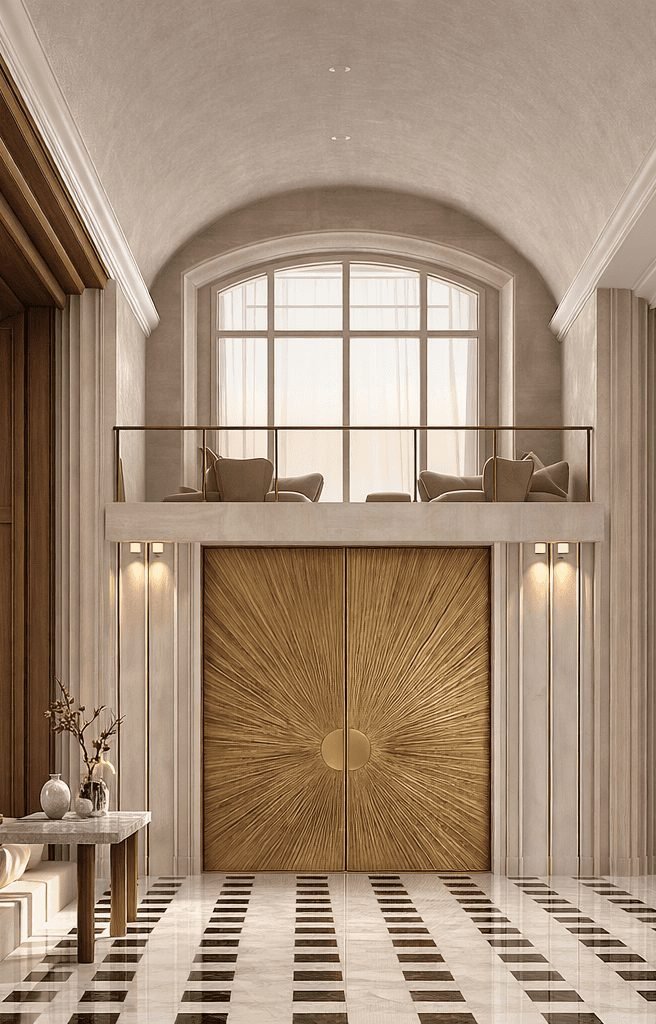

A 900 sqm residence shaped by Art Deco proportion, double-height volumes and an entrance hall that connects both floors.

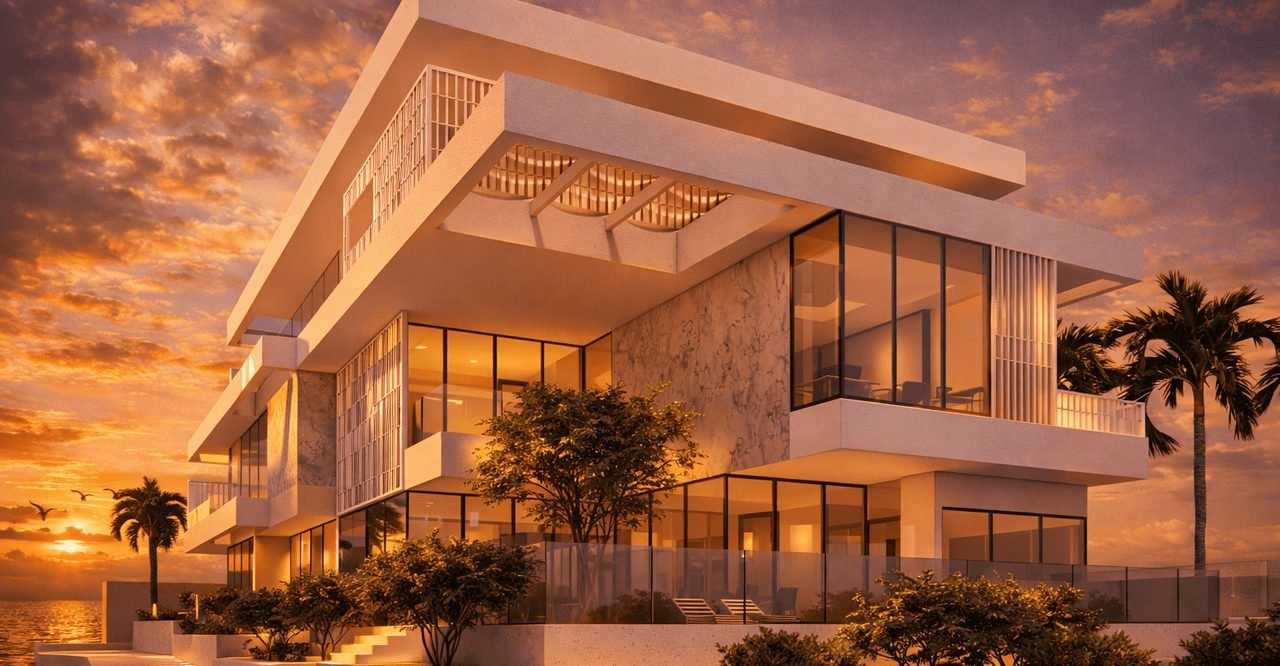

Al Dar Private Villa
A 1,245 sqm family villa developed in line with Aldar's residential design guidelines and prepared for developer approval.
FAQ
3D Visualization — common questions
Can I see my project in 3D before building it?
Yes. Photorealistic renders are produced during design development so you can assess proportion, materials and lighting, and request changes while they are still inexpensive to make.
Do you offer visualization as a standalone service?
It is normally part of a design commission, since the renders come from our own model. For an existing design we would need complete drawings and a specification to model from — tell us what you have and we will say whether it is workable.
Related services
Often commissioned together
Architectural Design
Anne Design House provides architect-led design for private villas, residential developments and boutique hospitality buildings in the UAE, Egypt and internationally — from concept and massing through façade design and developer or authority approvals..
Read more →Design Development
Design development is the stage where an approved concept becomes a buildable project — refined layouts, elevations and sections, technical details, joinery drawings and material specifications, coordinated with consultants and contractors..
Read more →Interior Design
Anne Design House designs complete residential interiors — space planning, material and colour palettes, lighting, bespoke joinery and furniture — for villas, apartments and houses in Dubai, Abu Dhabi, Cairo and internationally..
Read more →Start a project
Discuss a 3d visualization project.
Send a few details and Anne will reply personally, usually within two working days, to arrange a consultation. You then receive a written proposal covering scope, stages and fee.
